| Product name | Carbon Steel Plate |
| Thickness | 1.5-25mm |
| Width | 1250-2500mm (Or as custom’s request) ( regular width 1000mm, 1250mm, 1500mm ) |
| Coil ID | 508mm or 610mm |
| MOQ | 1TON |
| Standard | ASTM EN DIN GB ISO JIS BA ANSI |
| Steel Grade | Q235,Q345,ST37,Q195,Q215, A36,45# ,16Mn, SPHC |
| Technique | hot rolled cold rolled (as custom’s request) |
| Surface treatment | Bare/Shot Blasted and Spray Paint or as required. |

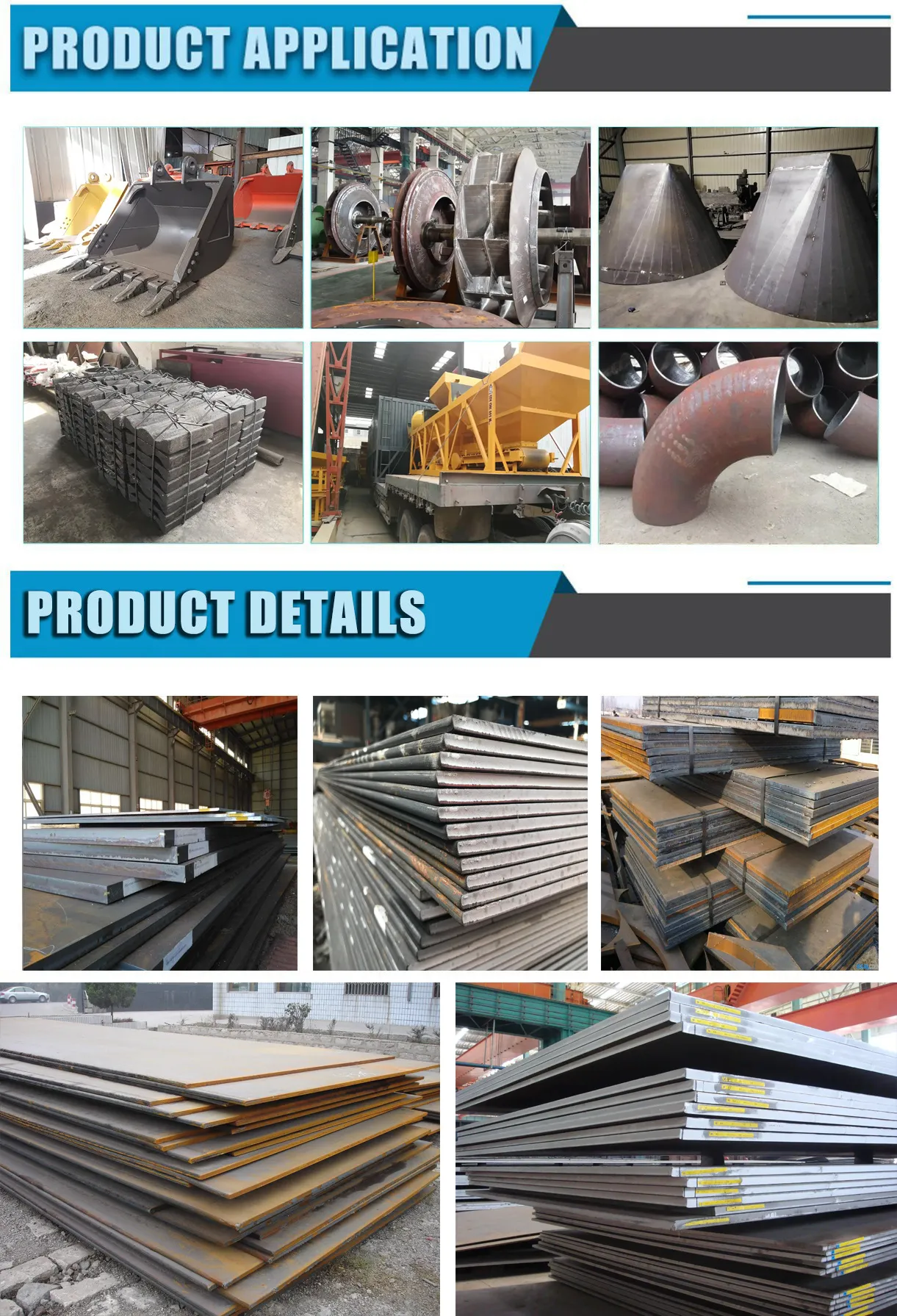

| Application | Used in home appliances construction, machinery manufacturing, container manufacturing, shipbuilding, bridges, etc. |
| Package | Standard export package (Plastic film in the first layer,second layer is Kraft paper. Third layer is galvanized sheet) |
| Payment Terms | T/T or L/C |
| Delivery time | Within 15 workdays after deposit received |
| Remarks | Insurance per to Contract terms; MTC will be handed on with shipping documents; We accept the third party certificatation test. |
|
Grade |
Rank |
Chemical Composition( %) |
||||
|
C |
Mn |
Si |
S |
P |
||
|
Q195 |
|
0.06~0.12 |
0.25~0.50 |
≤0.3 |
≤0.05 |
≤0.045 |
|
Q215 |
A |
0.09~0.15 |
0.25~0.55 |
≤0.3 |
≤0.05 |
≤0.045 |
|
B |
≤0.045 |
|||||
|
Q235 |
A |
0.14~0.22 |
0.30~0.65 |
≤0.3 |
≤0.05 |
≤0.045 |
|
B |
0.12~0.20 |
0.30~0.70 |
≤0.045 |
|||
|
C |
≤0.18 |
0.35~0.80 |
– |
≤0.04 |
≤0.04 |
|
|
D |
≤0.17 |
≤0.035 |
≤0.035 |
|||
|
Q255 |
A |
0.18~0.28 |
0.40~0.70 |
≤0.3 |
≤0.05 |
≤0.045 |
|
B |
≤0.045 |
|
||||
|
Q275 |
|
0.28~0.38 |
0.50~0.80 |
≤0.35 |
≤0.05 |
≤0.045 |
